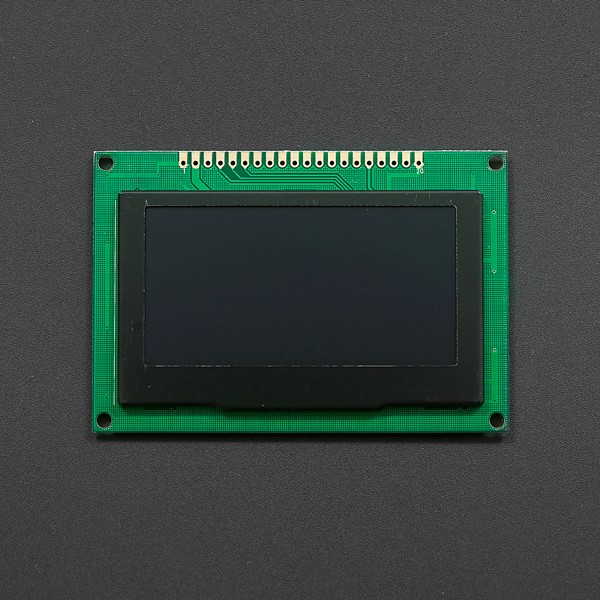

2.7英寸 12864 OLED液晶显示模块

概述

你是否想拥有一个实惠而且高画质的OLED显示屏？你是否淘遍了所有网店也没有找到心仪的OLED显示器？
DFRobot为你献上精心挑选的2.7英寸128*64分辨率的显示器。这款产品拥有众多优点，绝对会让你爱不释手

  • 2.7英寸超大屏幕，轻松显示图像和文字。

  • 白色显示和黑色背景，简洁大气，突显画质。

  • 超大显示广角。不论从哪个角度，你都能把上面的文字看的清清楚楚。

  • 屏幕周围加黑色金属边框，提升质感和保护。

  • 高强度磨砂表面。耐摔，无反光，非产适合安装到其他成品上面

  • 最重要的是它无缝兼容Arduino，用起来就是那么简单。

由于该LED屏无背光光源，因此能得到纯黑的背景，与白色显示成鲜明对比。并且屏幕厚度比普通12864 LED屏薄一半，减轻重量，提升质感。该屏幕用SPI协议驱动，反应速度快。再加上附送的 "u8glib"代码库，让你快速应用这一优质产品。

技术规格

  • 电压：5V/3.3V

  • 最大电源消耗：110mA@5V

  • 接口类型：SPI

  • 128*64分辨率

  • 2.7英寸大小

  • 尺寸：85*58*6.5mm

引脚说明图

以下引脚的介绍是从oled显示屏上面标示的1开始位置起

引脚名称 引脚 接线
1 VSS GND
2 VDD 3.3V—5V
3 V0 悬空，可以不接
4 DC 命令/数据标志（0，读写命令；1，读写数据）
5 WR 向OLED写入数据
6 RD 从OLED读数据
7~14 DB0-DB7 数据位
15 CS 芯片信号
16 RESET 复位
17 NC 悬空，可以不接
18 NC 悬空，可以不接
19 /NC 5V
20 FG GND

"oled引脚说明"

Oled与Uno的接线图

字符显示

1.接线

与上面接线相同

2.字符显示演示代码

该显示屏需要用到库函数，库及其相关资料

    #include "U8glib.h"
    U8GLIB_NHD27OLED_2X_BW u8g(13, 11, 10, 9);  // SPI Com: SCK =DB0 = 13, MOSI =DB1 = 11, CS = 10, A0  = DC= 9
    void draw(void) {
      u8g.setFont(u8g_font_unifont); //修改字体请参照附件中fontsize - u8glib字体库
      u8g.drawStr( 0, 22, "Hello World!");
    }

    void setup(void) {

    }

    void loop(void) {
      // picture loop
      u8g.firstPage();
      do {
        draw();
      } while( u8g.nextPage() );
    }

图片显示

1.图片转换

（1）打开图形转换软件，设置模式为图形模式。

(2）设置参数为C5I

（3）打开要转换的图像，图像格式为位图（bmp）

（4）然后点击生成字模即可，最后把生成的字模放入一个字符数组里面。

2.接线

与上面的接线方式相同

3.显示图片代码演示

该显示屏需用用到库文件，库及其相关资料

    #include "U8glib.h"
    U8GLIB_NHD27OLED_2X_BW u8g(13, 11, 10, 9);  //SPI Com: SCK =DB0 = 13, MOSI =DB1 = 11, CS = 10, A0  = DC= 9
    const uint8_t rook_bitmap[] PROGMEM = {
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,
    0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,
    0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,
    0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xC0,
    0x00,0x7F,0xC0,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x01,0xFE,0x00,
    0x00,0x0F,0xF0,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x03,0xF8,0x00,
    0x00,0x03,0xF8,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x00,
    0x00,0x00,0xFC,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x0F,0x80,0x00,
    0x00,0x00,0x3E,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x1F,0x00,0x00,
    0x00,0x00,0x1F,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x3E,0x00,0x00,
    0x00,0x00,0x0F,0x80,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x7C,0x0F,0x1F,
    0xEF,0xF0,0x07,0xC0,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0xF8,0x06,0x1B,
    0x6D,0xB0,0x03,0xE0,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0xF0,0x06,0x3B,
    0xED,0xA0,0x01,0xE0,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x01,0xE0,0x06,0x31,
    0xE9,0xE0,0x00,0xF0,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x01,0xE0,0x06,0x31,
    0xB9,0xA0,0x00,0xF0,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x03,0xC0,0x06,0x79,
    0xB9,0x98,0x00,0x78,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x03,0xC0,0x06,0xFB,
    0x39,0xB0,0x00,0x78,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x80,0x0F,0xDF,
    0x33,0xF0,0x00,0x3C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x00,
    0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
    0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
    0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
    0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
    0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
    0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
    0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
    0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
    0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
    0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
    0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
    0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x3B,
    0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x1B,
    0x7F,0xB8,0x00,0x3C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x1A,
    0x6D,0x90,0x00,0x3C,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x03,0xC0,0x00,0x1E,
    0xEF,0x90,0x00,0x78,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x03,0xC0,0x00,0x0E,
    0xC7,0x90,0x00,0x78,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x01,0xE0,0x00,0x0C,
    0xC7,0x90,0x00,0xF0,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x01,0xE0,0x00,0x0C,
    0xE7,0x90,0x00,0xF0,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x0C,
    0x6D,0xB0,0x01,0xE0,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0xF8,0x00,0x0E,
    0x7D,0xF0,0x03,0xE0,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x7C,0x00,0x0E,
    0x00,0x00,0x07,0xC0,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x3E,0x00,0x00,
    0x00,0x00,0x0F,0x80,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x1F,0x00,0x00,
    0x00,0x00,0x1F,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x0F,0x80,0x00,
    0x00,0x00,0x3E,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x00,
    0x00,0x00,0xFC,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x03,0xF8,0x00,
    0x00,0x03,0xF8,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x01,0xFE,0x00,
    0x00,0x0F,0xF0,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xC0,
    0x00,0x7F,0xC0,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,
    0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,
    0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,
    0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    };
    void draw(void) {
      // graphic commands to redraw the complete screen should be placed here
      u8g.drawBitmapP( 0, 0, 16, 64, rook_bitmap);

    }

    void setup(void) {
    }

    void loop(void) {
      // picture loop
      u8g.firstPage();
      do {
        draw();
      } while( u8g.nextPage() );

      // rebuild the picture after some delay
      delay(1000);
    }

汉字显示

1.汉字转换

（1）打开PCtoLCD2002软件，选择模式为字符模式。

（2）在文本框中输入字符“人”，设置参数为C5I，点击生成字模，最后把生成的字模放入一个字符数组里面。

2.接线图

同上

3.演示显示屏显示汉字“人”代码

显示汉字同样需要用到库函数，#库及其相关资料下载

    #include "U8glib.h"//库函数
    U8GLIB_NHD27OLED_2X_BW u8g(13, 11, 10, 9);  // SPI Com: SCK = 13, MOSI = 11, CS = 10, A0 = 9 芯片类型及其对应的接线方式
    const uint8_t rook_bitmap[] PROGMEM = {
    0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,
    0x01,0x00,0x01,0x00,0x02,0x80,0x02,0x80,
    0x04,0x40,0x04,0x40,0x08,0x20,0x08,0x20,
    0x10,0x10,0x20,0x08,0x40,0x04,0x80,0x02,/*"人",0*/
    };
    void draw(void) {
      // graphic commands to redraw the complete screen should be placed here
      u8g.drawBitmapP( 0, 0, 2, 16, rook_bitmap);//第0行0列开始显示文字，生成的汉字“人”大小为16*16，所以后面的两个参数为（16/8,16）.

    }

    void setup(void) {
    }

    void loop(void) {
      // picture loop
      u8g.firstPage();
      do {
        draw();
      } while( u8g.nextPage() );
      // rebuild the picture after some delay
      delay(1000);
    }

4.多个汉字显示代码注意事项

该取模软件，在生成字模时每个汉字会单独生成一个字模对应的数据，在显示多个汉字时，需要单独显示每个汉，即多次调用u8g.drawBitmapP( );这个函数。

5.多个汉字显示代码演示

    #include "U8glib.h"
    U8GLIB_NHD27OLED_2X_BW u8g(13, 11, 10, 9);  // SPI Com: SCK = 13, MOSI = 11, CS = 10, A0 = 9
    const uint8_t rook_bitmap1[] PROGMEM = {
    0x10,0x00,0x11,0xF0,0x11,0x10,0x11,0x10,
    0xFD,0x10,0x11,0x10,0x31,0x10,0x39,0x10,
    0x55,0x10,0x55,0x10,0x91,0x10,0x11,0x12,
    0x11,0x12,0x12,0x12,0x12,0x0E,0x14,0x00,/*"机",0*/
    };
    const uint8_t rook_bitmap2[] PROGMEM = {
    0x00,0x00,0x3E,0x7C,0x22,0x44,0x22,0x44,
    0x3E,0x7C,0x01,0x20,0x01,0x10,0xFF,0xFE,
    0x02,0x80,0x0C,0x60,0x30,0x18,0xC0,0x06,
    0x3E,0x7C,0x22,0x44,0x22,0x44,0x3E,0x7C,/*"器",1*/
    };
    const uint8_t rook_bitmap3[] PROGMEM = {
    0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,
    0x01,0x00,0x01,0x00,0x02,0x80,0x02,0x80,
    0x04,0x40,0x04,0x40,0x08,0x20,0x08,0x20,
    0x10,0x10,0x20,0x08,0x40,0x04,0x80,0x02,/*"人",2*/
    };
    void draw(void) {
      // graphic commands to redraw the complete screen should be placed here
      u8g.drawBitmapP( 0, 0, 2, 16, rook_bitmap1);//0行0列显示“机”
        u8g.drawBitmapP( 16, 0, 2, 16, rook_bitmap2);//0行16列显示“器”
         u8g.drawBitmapP( 32, 0, 2, 16, rook_bitmap3);//0行32列显示“人”
    }

    void setup(void) {
    }

    void loop(void) {
      // picture loop
      u8g.firstPage();
      do {
        draw();
      } while( u8g.nextPage() );

      // rebuild the picture after some delay
      delay(1000);
    }

部分代码解释

  • u8g.drawStr( m, n, str);//m代表的是第m列，n代表的是第n行，str是要显示的字符串

  • u8g.drawBitmapP( m, n, x, y, str);//m代表的是第m列，n代表的是第n行，x代表的是生成字模点阵时的列数除以8，y代表的是点阵行数，str是要显示的字符串

例如显示汉字“人”u8g.drawBitmapP( 0, 0, 2, 16, rook_bitmap);//在生成字模时大小为16*16，那么x=16/2;y就是第二个16.
