DFRduino RoMeo V2 (R3)

产品简介

RoMeo V2[R3]是多合一Arduino兼容微控制器,是DFRobot为机器人应用专门设计的。RoMeo控制器得益于Arduino开源平台,其受成千上万行开源代码的支持,而且借助于Arduino shield,它可以被很容易地扩展。集成2路DC电机驱动器和XBee插板可以让你立刻开始你的项目,而不需要额外的电机驱动器或无线上网模块。 注意:RoMeo v2的模拟端口引脚映射与旧版是不同的,使用Arduino IDE时请选择Arduino Leonardo board

技术规格

相比 [http://www.dfrobot.com/wiki/index.php/DFRduino_Romeo-All_in_one_Controller_V1.1(SKU:DFR0004) Romeo v1.1]的改进

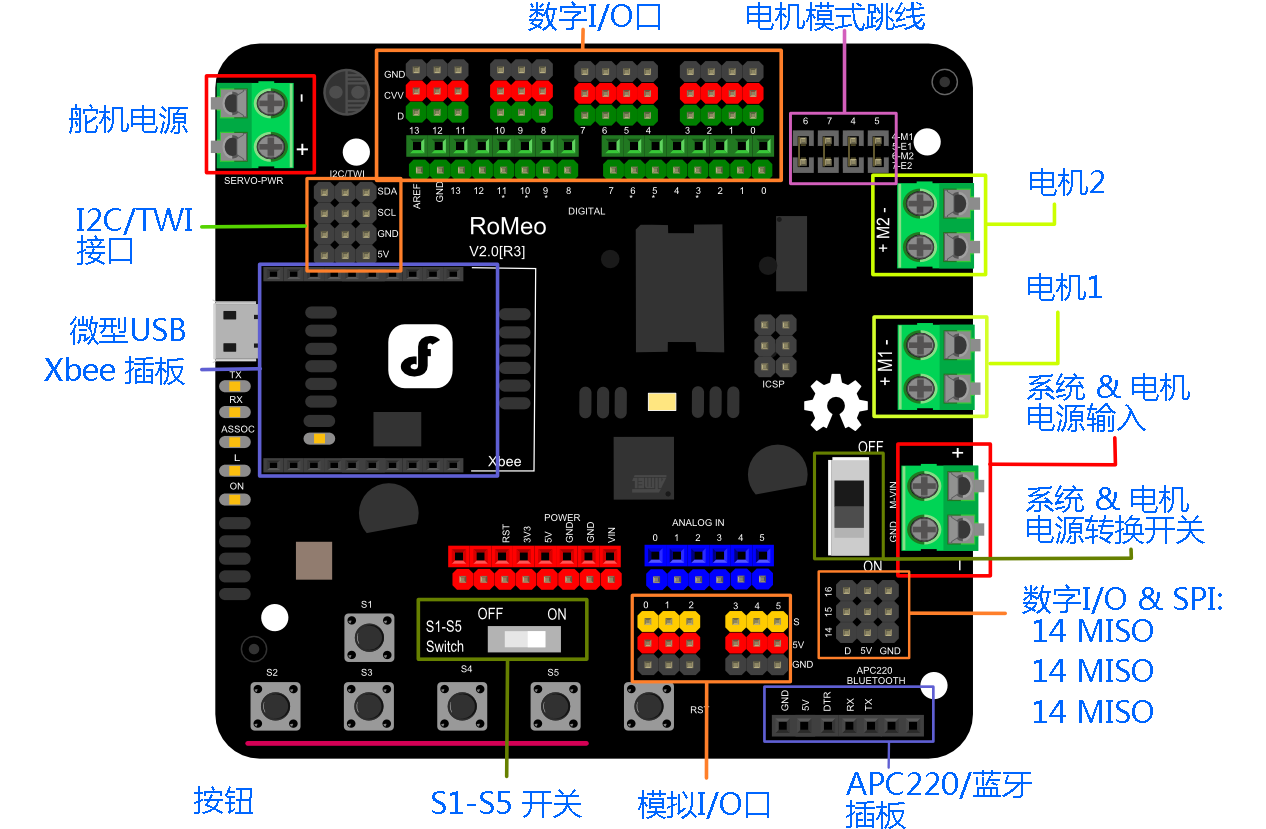

引脚说明

DFRduino RoMeo V2 (R3)

电源设计方案

该电机控制器电源方案是为机器人应用特别设计的。 舵机电源端子

系统和舵机电源切换开关的设置

示例代码,使用按钮S1-S5

/* start code */
char msgs[5][15] = {
    "Right Key OK ",
    "Up Key OK    ",
    "Down Key OK  ",
    "Left Key OK  ",
    "Select Key OK" };
char start_msg[15] = {"Start loop "};
int adc_key_val[5] = { 30, 150, 360, 535, 760 };
int NUM_KEYS = 5;
int adc_key_in;
int key=-1;
int oldkey=-1;
void setup() {
    pinMode(13, OUTPUT);  //we'll use the debug LED to output a heartbeat
    Serial.begin(9600);

    /* Print that we made it here */
    Serial.println(start_msg);
}

void loop()
{
    adc_key_in = analogRead(0);    // read the value from the sensor
    digitalWrite(13, HIGH);
    /* get the key */
    key = get_key(adc_key_in);    // convert into key press
    if (key != oldkey) {   // if keypress is detected
        delay(50);      // wait for debounce time
        adc_key_in = analogRead(0);    // read the value from the sensor
        key = get_key(adc_key_in);    // convert into key press
        if (key != oldkey) {
            oldkey = key;
            if (key >=0){
                Serial.println(adc_key_in, DEC);
                Serial.println(msgs[key]);
            }
        }
    }
    digitalWrite(13, LOW);
}
// Convert ADC value to key number
int get_key(unsigned int input) {
    int k;
    for (k = 0; k < NUM_KEYS; k++)
        if (input < adc_key_val[k])
            return k;
    if (k >= NUM_KEYS)
        k = -1;     // No valid key pressed
    return k;
}

/* end code */

引脚配置

引脚 功能
数字口4 电机1方向控制
数字口5 电机1速度控制(PWM)
数字口6 电机2速度控制(PWM)
数字口7 电机2方向控制

"PWM模式"

引脚 功能
数字口4 电机1使能
数字口5 电机1速度(方向)控制
数字口6 电机2速度(方向)控制
数字口7 电机2使能

"PLL模式"

PWM控制模式

Fig4: PWM Motor Control Pin Allocation
The PWM DC motor control is implemented by manipulating two digital IO pins and two PWM pins. As illustrated in the diagram above (Figure 5), Pin 4,7 (7,8 for old Romeo version) are motor direction control pins, Pin 5,6 (6,9 for old Romeo version) are motor speed control pins.

Sample Code:


//Standard PWM DC control
int E1 = 5;     //M1 Speed Control
int E2 = 6;     //M2 Speed Control
int M1 = 4;    //M1 Direction Control
int M2 = 7;    //M1 Direction Control

///For previous Romeo, please use these pins.
//int E1 = 6;     //M1 Speed Control
//int E2 = 9;     //M2 Speed Control
//int M1 = 7;    //M1 Direction Control
//int M2 = 8;    //M1 Direction Control


void stop(void)                    //Stop
{
    digitalWrite(E1,LOW);
    digitalWrite(E2,LOW);
}
void advance(char a,char b)          //Move forward
{
    analogWrite (E1,a);      //PWM Speed Control
    digitalWrite(M1,HIGH);
    analogWrite (E2,b);
    digitalWrite(M2,HIGH);
}
void back_off (char a,char b)          //Move backward
{
    analogWrite (E1,a);
    digitalWrite(M1,LOW);
    analogWrite (E2,b);
    digitalWrite(M2,LOW);
}
void turn_L (char a,char b)             //Turn Left
{
    analogWrite (E1,a);
    digitalWrite(M1,LOW);
    analogWrite (E2,b);
    digitalWrite(M2,HIGH);
}
void turn_R (char a,char b)             //Turn Right
{
    analogWrite (E1,a);
    digitalWrite(M1,HIGH);
    analogWrite (E2,b);
    digitalWrite(M2,LOW);
}
void setup(void)
{
    int i;
    for(i=4;i<=7;i++)
        pinMode(i, OUTPUT);
    Serial.begin(19200);      //Set Baud Rate
    Serial.println("Run keyboard control");
}
void loop(void)
{
    if(Serial.available()){
        char val = Serial.read();
        if(val != -1)
        {
            switch(val)
            {
            case 'w'://Move Forward
                advance (255,255);   //move forward in max speed
                break;
            case 's'://Move Backward
                back_off (255,255);   //move back in max speed
                break;
            case 'a'://Turn Left
                turn_L (100,100);
                break;
            case 'd'://Turn Right
                turn_R (100,100);
                break;
            case 'z':
                Serial.println("Hello");
                break;
            case 'x':
                stop();
                break;
            }
        }
        else stop();
    }
}

PLL控制模式

The Romeo also supports PLL(Phase locked loop) control mode.

`Fig5:``   ``PLL``   ``Motor``   ``Control``   ``Pin``   ``Allocation``   ``Configuration`

Sample Code:

//Standard DLL Speed control

    int E1 = 4;     //M1 Speed Control
int E2 = 7;     //M2 Speed Control
int M1 = 5;    //M1 Direction Control
int M2 = 6;    //M1 Direction Control

///For previous Romeo, please use these pins.
//int E1 = 6;     //M1 Speed Control
//int E2 = 9;     //M2 Speed Control
//int M1 = 7;    //M1 Direction Control
//int M2 = 8;    //M1 Direction Control

//When m1p/m2p is 127, it stops the motor
//when m1p/m2p is 255, it gives the maximum speed for one direction
//When m1p/m2p is 0, it gives the maximum speed for reverse direction

void DriveMotorP(byte m1p, byte m2p)//Drive Motor Power Mode
{

    digitalWrite(E1, HIGH);
    analogWrite(M1, (m1p));

    digitalWrite(E2, HIGH);
    analogWrite(M2, (m2p));

}

void setup(void)
{
    int i;
    for(i=6;i<=9;i++)
        pinMode(i, OUTPUT);
    Serial.begin(19200);      //Set Baud Rate
}
void loop(void)
{
    if(Serial.available()){
        char val = Serial.read();
        if(val!=-1)
        {
            switch(val)
            {
            case 'w'://Move Forward
                DriveMotorP(0xff,0xff); // Max speed
                break;
            case 'x'://Move Backward
                DriveMotorP(0x00,0x00);
                ; // Max speed
                break;
            case 's'://Stop
                DriveMotorP(0x7f,0x7f);
                break;

            }
        }
    }
}

图解
