SPI LCD12864 Module

概述

SPI LCD12864模块是一款基于12864液晶显示器开发的显示模块。考虑到LCD12864显示器在并行数据传输模式下的使用难度较高,驱动代码较为复杂,我们开发了这款SPI为接口的显示模块。
12864带汉字库图形点阵液晶显示模块,可显示8192个中文汉字（16X16点阵）、128个字符（8X16点阵）和图形显示（128X64点阵）。该模块具有并行和串行接口,背光控制（并行模式时使用）,背光开关（串行模式使用）,串行、并行模式开关切换功能,对比度调节电位器。
接口电路板隐藏于LCD背面,即美观又不影响安装。使用IDC6插座作为SPI串行接口,使用一个IDC6专用连接线即可插接到interface shield上实现串行控制,使用杜邦排线可连接到Arduino传感器扩展板上实现并行控制,可与Arduino控制器组成一个强劲的显示系统。

技术规格

  • 电源电压：VDD4.5～5.5V(内置升压电路,无需负压)
  • 控制器：ST7920
  • 点阵个数：128列×64行
  • 显示颜色：蓝底白字
  • 可视角度：170度
  • LCD类型：STN
  • 控制接口：4/8位数字并行驱动(LCD12864默认模式)和3位串行
  • LED背光：蓝色
  • 软件功能：光标显示、画面移位、自定义字符、反白显示、睡眠模式等。
  • 工作温度：-20℃～70℃
  • 存储温度：-30℃～80℃
  • 可通过连接Interface Shield使用Arduino直接驱动,也可根据引脚图使用杜邦线连接
  • 模块尺寸：93×70×22mm
  • 视域尺寸：73×39mm

引脚说明图

链接示意图

U8glib库的使用

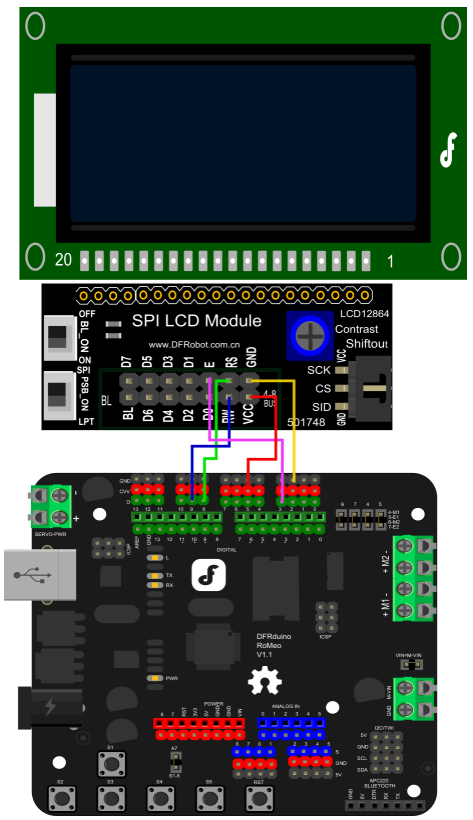

1.接线图

引脚 接线
VSS GND
VDD 5V
RS 模拟口A3
R/W 模拟口A2
E 模拟口A4

"U8glib 接线"

2.显示字符

（1）接线图

参考上面的接线图

（2）演示字符显示代码

#include "U8glib.h"
U8GLIB_ST7920_128X64_4X u8g(18, 16, 17);
void draw(void) {
  u8g.setFont(u8g_font_unifont);
  u8g.drawStr( 0, 22, "Hello World!");
}

void setup(void) {

}

void loop(void) {
  // picture loop
  u8g.firstPage();
  do {
    draw();
  } while( u8g.nextPage() );
}

3.显示图片

（1）图片转换

第一：打开图形转换软件，设置模式为图形模式。

第二：设置参数为C5I

第三：打开要转换的图像，图像格式为位图（bmp）

第四：然后点击生成字模即可，最后把生成的字模放入一个字符数组里面。

（2）接线

与上面接线的方式相同

（3）演示显示图片代码

该显示屏需用用到U8glib库文件，库及其相关资料

#include "U8glib.h"
U8GLIB_ST7920_128X64_4X u8g(18, 16, 17);
const uint8_t rook_bitmap[] PROGMEM = {
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,
0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,
0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,
0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xC0,
0x00,0x7F,0xC0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x01,0xFE,0x00,
0x00,0x0F,0xF0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x03,0xF8,0x00,
0x00,0x03,0xF8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x00,
0x00,0x00,0xFC,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x0F,0x80,0x00,
0x00,0x00,0x3E,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x1F,0x00,0x00,
0x00,0x00,0x1F,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x3E,0x00,0x00,
0x00,0x00,0x0F,0x80,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7C,0x0F,0x1F,
0xEF,0xF0,0x07,0xC0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xF8,0x06,0x1B,
0x6D,0xB0,0x03,0xE0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xF0,0x06,0x3B,
0xED,0xA0,0x01,0xE0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0xE0,0x06,0x31,
0xE9,0xE0,0x00,0xF0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0xE0,0x06,0x31,
0xB9,0xA0,0x00,0xF0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x03,0xC0,0x06,0x79,
0xB9,0x98,0x00,0x78,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x03,0xC0,0x06,0xFB,
0x39,0xB0,0x00,0x78,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x80,0x0F,0xDF,
0x33,0xF0,0x00,0x3C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x00,
0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x3B,
0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x1B,
0x7F,0xB8,0x00,0x3C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x1A,
0x6D,0x90,0x00,0x3C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x03,0xC0,0x00,0x1E,
0xEF,0x90,0x00,0x78,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x03,0xC0,0x00,0x0E,
0xC7,0x90,0x00,0x78,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0xE0,0x00,0x0C,
0xC7,0x90,0x00,0xF0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0xE0,0x00,0x0C,
0xE7,0x90,0x00,0xF0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x0C,
0x6D,0xB0,0x01,0xE0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xF8,0x00,0x0E,
0x7D,0xF0,0x03,0xE0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7C,0x00,0x0E,
0x00,0x00,0x07,0xC0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x3E,0x00,0x00,
0x00,0x00,0x0F,0x80,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x1F,0x00,0x00,
0x00,0x00,0x1F,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x0F,0x80,0x00,
0x00,0x00,0x3E,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x00,
0x00,0x00,0xFC,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x03,0xF8,0x00,
0x00,0x03,0xF8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x01,0xFE,0x00,
0x00,0x0F,0xF0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xC0,
0x00,0x7F,0xC0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,
0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,
0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,
0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
};
void draw(void) {
  // graphic commands to redraw the complete screen should be placed here
  u8g.drawBitmapP( 0, 0, 16, 64, rook_bitmap);

}

void setup(void) {
}

void loop(void) {
  // picture loop
  u8g.firstPage();
  do {
    draw();
  } while( u8g.nextPage() );

  // rebuild the picture after some delay
  delay(1000);
}
}

4.显示中文

（1）汉字转换

第一：打开PCtoLCD2002软件，选择模式为字符模式。


第二：在文本框中输入字符“人”，设置参数为C5I，点击生成字模，最后把生成的字模放入一个字符数组里面。

（2）接线图

与上面的接线图相同

（3）演示显示屏显示汉字“人”代码

显示汉字同样需要用到U8glib库函数，#库及其相关资料下载

#include "U8glib.h"//库函数
U8GLIB_ST7920_128X64_4X u8g(18, 16, 17);
const uint8_t rook_bitmap[] PROGMEM = {
0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,
0x01,0x00,0x01,0x00,0x02,0x80,0x02,0x80,
0x04,0x40,0x04,0x40,0x08,0x20,0x08,0x20,
0x10,0x10,0x20,0x08,0x40,0x04,0x80,0x02,/*"人",0*/
};
void draw(void) {
  // graphic commands to redraw the complete screen should be placed here
  u8g.drawBitmapP( 0, 0, 2, 16, rook_bitmap);//第0行0列开始显示文字，生成的汉字“人”大小为16*16，所以后面的两个参数为（16/8,16）.

}

void setup(void) {
}

void loop(void) {
  // picture loop
  u8g.firstPage();
  do {
    draw();
  } while( u8g.nextPage() );
  // rebuild the picture after some delay
  delay(1000);
}

（4）多个汉字显示代码注意事项

该取模软件，在生成字模时每个汉字会单独生成一个字模对应的数据，在显示多个汉字时，需要单独显示每个汉，即多次调用u8g.drawBitmapP( );这个函数。

（5）多个汉字显示代码演示

#include "U8glib.h"
U8GLIB_ST7920_128X64_4X u8g(18, 16, 17);
const uint8_t rook_bitmap1[] PROGMEM = {
0x10,0x00,0x11,0xF0,0x11,0x10,0x11,0x10,
0xFD,0x10,0x11,0x10,0x31,0x10,0x39,0x10,
0x55,0x10,0x55,0x10,0x91,0x10,0x11,0x12,
0x11,0x12,0x12,0x12,0x12,0x0E,0x14,0x00,/*"机",0*/
};
const uint8_t rook_bitmap2[] PROGMEM = {
0x00,0x00,0x3E,0x7C,0x22,0x44,0x22,0x44,
0x3E,0x7C,0x01,0x20,0x01,0x10,0xFF,0xFE,
0x02,0x80,0x0C,0x60,0x30,0x18,0xC0,0x06,
0x3E,0x7C,0x22,0x44,0x22,0x44,0x3E,0x7C,/*"器",1*/
};
const uint8_t rook_bitmap3[] PROGMEM = {
0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,
0x01,0x00,0x01,0x00,0x02,0x80,0x02,0x80,
0x04,0x40,0x04,0x40,0x08,0x20,0x08,0x20,
0x10,0x10,0x20,0x08,0x40,0x04,0x80,0x02,/*"人",2*/
};
void draw(void) {
  // graphic commands to redraw the complete screen should be placed here
  u8g.drawBitmapP( 0, 0, 2, 16, rook_bitmap1);//0行0列显示“机”
    u8g.drawBitmapP( 16, 0, 2, 16, rook_bitmap2);//0行16列显示“器”
     u8g.drawBitmapP( 32, 0, 2, 16, rook_bitmap3);//0行32列显示“人”
}

void setup(void) {
}

void loop(void) {
  // picture loop
  u8g.firstPage();
  do {
    draw();
  } while( u8g.nextPage() );

  // rebuild the picture after some delay
  delay(1000);
}

5.部分代码解释

  • u8g.drawStr( m, n, str);//m代表的是第m列，n代表的是第n行，str是要显示的字符串

  • u8g.drawBitmapP( m, n, x, y, str);//m代表的是第m列，n代表的是第n行，x代表的是生成字模点阵时的列数除以8，y代表的是点阵行数，str是要显示的字符串

例如显示汉字“人”u8g.drawBitmapP( 0, 0, 2, 16, rook_bitmap);//在生成字模时大小为16*16，那么x=16/2;y就是第二个16.

12864LCDSPI库函数的使用

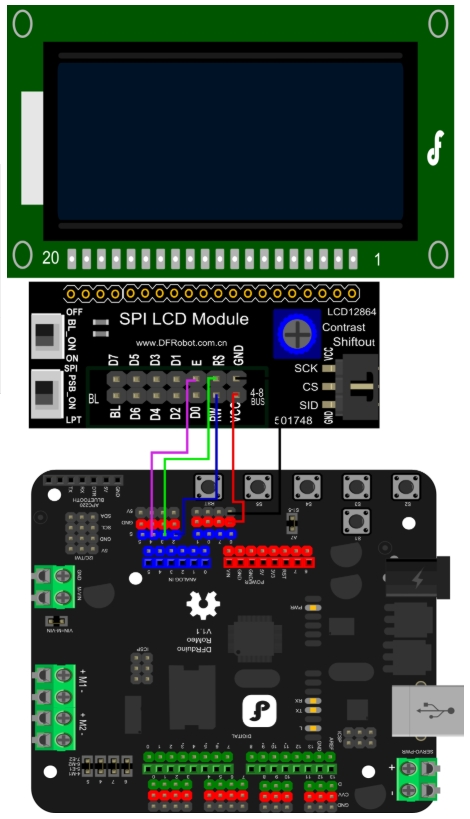

1.12864LCDSPI接线方式

在下载程序时，还需要拨动以下开关。
1)Turn the BL_ON Switch to the "ON" side;
2)Turn the PBS_ON Switch to the "SPI" side

引脚 接线
VSS GND
VDD 5V
RS 数字口8
R/W 数字口9
E 数字口3

"SPI模式"

2.LCD12864RSPI显示字符

（1）接线

与上面12864SPI接线方式相同

（2）演示显示字符代码

#include "LCD12864RSPI.h"
#define AR_SIZE( a ) sizeof( a ) / sizeof( a[0] )
unsigned char show[]="dfrobot.com";
void setup()
{
LCDA.Initialise(); // 屏幕初始化
delay(100);
}

void loop()
{
LCDA.CLEAR();//清屏
delay(100);

LCDA.DisplayString(2,1,show,AR_SIZE(show));;//第三行第二格开始，显示网址dfrobot.com/
delay(5000);
}

3.LCD12864RSPI显示汉字

（1）汉字解码方法

打开汉字解码软件，在待处理=字符串中输入要解码的汉字，点击转换即可，例如：

汉字解码图

（2）连线图

参考上面12864SPI的连线图

（3）LCD12864RSPI 文字演示代码

#include "LCD12864RSPI.h"
#define AR_SIZE( a ) sizeof( a ) / sizeof( a[0] )
unsigned char show[]= { 0xD6, 0xC7, 0xCE, 0xBB,  0xBB, 0xFA, 0xC6, 0xF7, 0xC8, 0xCB  };  //智位机器人
void setup()
{
LCDA.Initialise(); // 屏幕初始化
delay(100);
}

void loop()
{
LCDA.CLEAR();//清屏
delay(100);
LCDA.DisplayString(0,2,show,AR_SIZE(show));//第一行第三格开始，显示文智位机器人
delay(5000);
}

4.LCD12864RSPI 显示图片

（1）图片转换

第一：先打开photoshop，新建文档，大小为128*64，图片做好之后，保存格式为位图。

新建图片

第二：打开图片取模软件，先设置参数，选择c语言，输出大小X为128，Y为64。

参数设置

第三：载入制作好或者已有的位图图片。

打开图片

第四：保存数据，选择适当的位置，并给生成数据的文档命名。

保存数据

第五：打开保存生成数据的文档，并将其生成的字符数组复制到代码里面。

放入代码

（2）连线图

与上面12864SPI的连线图相同

（3）LCD12864RSPI的图片显示代码

#include "LCD12864RSPI.h"
#define AR_SIZE( a ) sizeof( a ) / sizeof( a[0] )
unsigned char logo0[]={                                         //笑脸
     0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,
      0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,
      0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,
      0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xC0,
      0x00,0x7F,0xC0,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x01,0xFE,0x00,
      0x00,0x0F,0xF0,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x03,0xF8,0x00,
      0x00,0x03,0xF8,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x00,
      0x00,0x00,0xFC,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x0F,0x80,0x00,
      0x00,0x00,0x3E,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x1F,0x00,0x00,
      0x00,0x00,0x1F,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x3E,0x00,0x00,
      0x00,0x00,0x0F,0x80,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x7C,0x0F,0x1F,
      0xEF,0xF0,0x07,0xC0,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0xF8,0x06,0x1B,
      0x6D,0xB0,0x03,0xE0,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0xF0,0x06,0x3B,
      0xED,0xA0,0x01,0xE0,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x01,0xE0,0x06,0x31,
      0xE9,0xE0,0x00,0xF0,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x01,0xE0,0x06,0x31,
      0xB9,0xA0,0x00,0xF0,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x03,0xC0,0x06,0x79,
      0xB9,0x98,0x00,0x78,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x03,0xC0,0x06,0xFB,
      0x39,0xB0,0x00,0x78,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x80,0x0F,0xDF,
      0x33,0xF0,0x00,0x3C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x00,
      0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
      0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
      0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
      0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
      0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
      0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
      0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
      0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
      0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
      0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
      0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
      0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x3B,
      0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x1B,
      0x7F,0xB8,0x00,0x3C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x1A,
      0x6D,0x90,0x00,0x3C,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x03,0xC0,0x00,0x1E,
      0xEF,0x90,0x00,0x78,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x03,0xC0,0x00,0x0E,
      0xC7,0x90,0x00,0x78,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x01,0xE0,0x00,0x0C,
      0xC7,0x90,0x00,0xF0,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x01,0xE0,0x00,0x0C,
      0xE7,0x90,0x00,0xF0,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x0C,
      0x6D,0xB0,0x01,0xE0,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0xF8,0x00,0x0E,
      0x7D,0xF0,0x03,0xE0,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x7C,0x00,0x0E,
      0x00,0x00,0x07,0xC0,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x3E,0x00,0x00,
      0x00,0x00,0x0F,0x80,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x1F,0x00,0x00,
      0x00,0x00,0x1F,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x0F,0x80,0x00,
      0x00,0x00,0x3E,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x00,
      0x00,0x00,0xFC,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x03,0xF8,0x00,
      0x00,0x03,0xF8,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x01,0xFE,0x00,
      0x00,0x0F,0xF0,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xC0,
      0x00,0x7F,0xC0,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,
      0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,
      0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,
      0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
      0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
};

void setup()
{
LCDA.Initialise(); // 屏幕初始化
delay(100);
}

void loop()
{

LCDA.DrawFullScreen(logo0);
delay(5000);
}

4.部分代码解释

LCDA.Initialise(); // 屏幕初始化
LCDA.CLEAR();//清屏
LCDA.DisplayString(m,n,str,length));//m代表的是行，n代表的是列，str代表的是要显示内容的名字，length是字符串的长度
LCDA.DrawFullScreen(logo0)//满屏显示内容

相关文档

  1. U8glib库及其相关资料下载
  2. 12864库函数以及取模软件下载
  3. 老版本链接

<File:nextredirectltr.png>购买SPI LCD12864 Module(Arduino兼容)

category: Product Manual category: DFR Series category: LCDs category: source

回到顶部
