SEN0754 超声波液位监测传感器

简介

这一款基于液位高度检测应用而设计的超声波液位传感器，针对传统超声波传感器普遍存在的盲区大、测量角度宽、响应迟缓及安装不便等行业痛点。该传感器突破性地实现了1.5cm的极小标准盲区，并支持通过指令将最远量程灵活设定在30~300cm之间（出厂默认200cm）。传感器整体采用微型防尘防水结构设计，防护等级高达IP67。支持3.3V ~12V的宽电压输入，并在输入/输出接口处集成了符合 IEC61000-4-2标准的静电防护器件（抗静电达+4K/8K），确保在-25℃~+65℃的恶劣温度循环中维持极高可靠性。

6种算法模式可设
传感器内置多达6种底层算法模式（包含实时值、3级液面晃动过滤、小台阶过滤及高灵敏度模式），有效过滤水面波浪、泡沫带来的误判，以适应不同的液位监测场景。
传感器默认工作为算法模式1，以100ms为周期自动工作，可以通过写modbus协议设置算法模式，其中算法模式0、4、5为实时值输出，算法模式1、2、3为处理值输出。实时值输出，响应时间为100ms；处理值输出数据更稳定，响应时间≥2s。

9个信号等级可设
传感器信号等级可设置为1~9级，适应不同量程和角度需求，默认第五级，可测量程越200cm；等级越高，检测角度越大，感应越灵敏，可测量程就越远。

支持5个等级电源降噪
电源降噪等级分为1~5级(默认为1)，使其能够从容应对电池直供、长线缆USB供电或高噪声开关电源等各类复杂电气环境。等级越高，对噪声抑制越大，同时整体角度也会受影响，等级越高角度受影响情况更大。

特性

盲区低至1.5cm，可设置30～300cm范围内任意值作为最远量程
内置液面晃动过滤、小台阶过滤、高灵敏度等6种液位算法模式可设置
9 个信号等级可设置，适配不同量程和角度的需求
内置电源降噪功能，可支持5级降噪等级设置
IP67 防水防尘，抗静电达IEC61000-4-2标准，支持3.3V-12V宽压运行

应用场景

无土栽培营养液监测
箱内消毒液液位监测
绿植观赏箱营养液监测
房车水箱污水箱水位监测

技术规格

工作电压：3.3~12V
待机电流：≤5uA
平均工作电流：≤9mA
盲区距离：≤1.5cm
测量范围：30~300cm可设（默认200cm）
精度：0.5+(S*0.3％)cm
响应时间：实时值100ms，处理值≥2000ms
上电工作时间：≤650ms
工作周期：100ms
输出方式：UART自动（Modbus协议）
温度补偿：有
角度：10~50°
工作温度：-25°C~65°C
工作湿度：65~80%RH
存储温度：-30°C~80°C
存储湿度：65~90%RH
静电防护等级：+4K/8K (V)
防护等级：IP67
外壳材料：PC材质

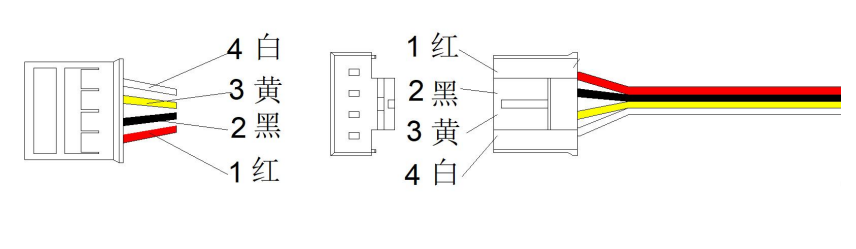

引脚示意图

线序	颜色	功能描述
PIN1	红线	VCC
PIN2	黑线	GND
PIN3	黄线	RX
PIN4	白线	TX

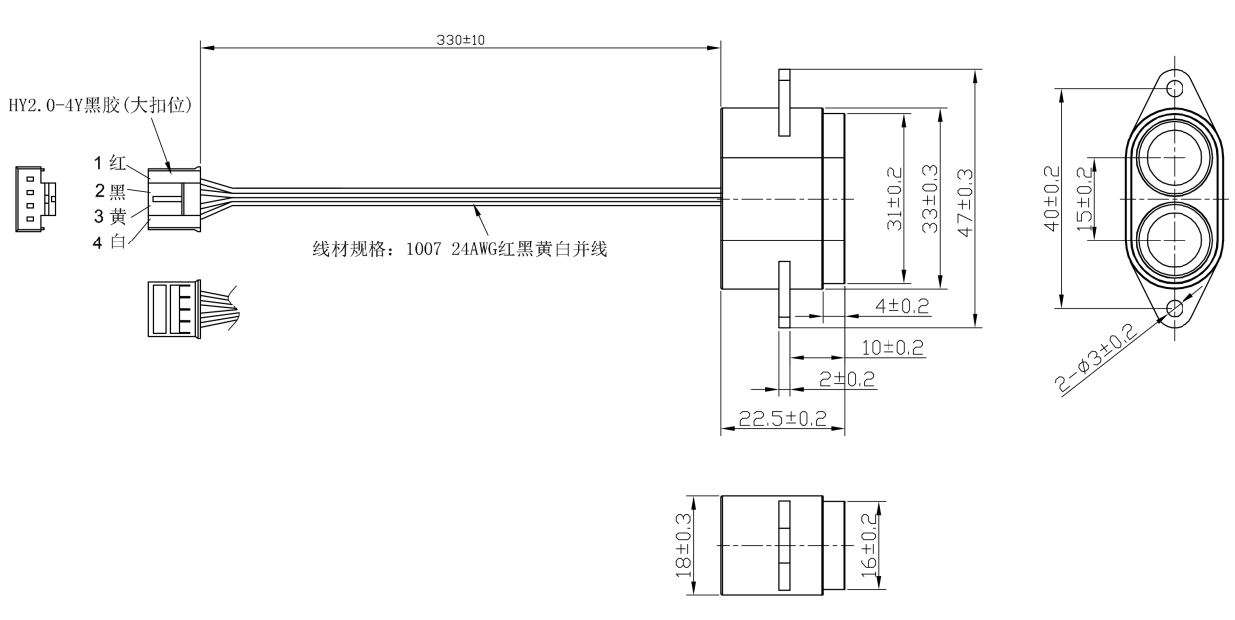

尺寸图

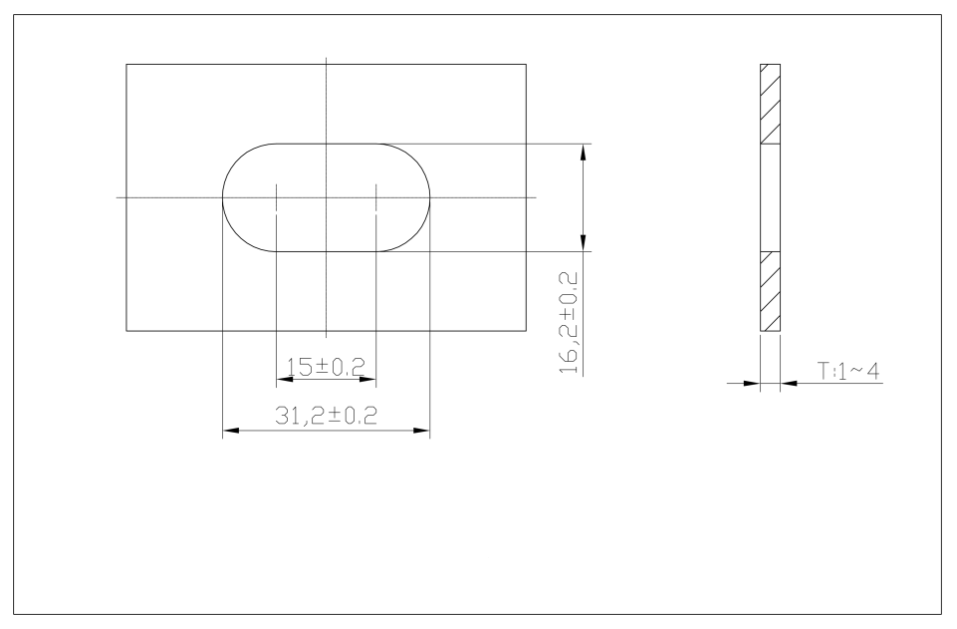

安装方式及开孔建议

传感器推荐使用顶部固定安装检测液位高度，开孔尺寸参考下图

接入Arduino使用教程

硬件准备

Arduino UNO R3开发板 x1
Arduino UNO IO 传感器扩展板 x1
超声波液位传感器 x1
4PIN传感器转接线 x1

软件准备

下载Arduino IDE：点击下载Arduino IDE
该示例代码兼容UNO R3、Mage2560、ESP32开发板

硬件连接

传感器+4Pin转接线	Arduino UNO	Mega2560	ESP32
Red wire（+）	5V	5V	5V
Black wire（-）	GND	GND	GND
Blue wire (RX)	D3	D18	D17
Green wire (TX)	D2	D19	D16

实时值输出演示代码

传感器推荐顶部固定安装，烧录代码前需修改实际的安装高度，默认安装高度为2m，该示例代码输出实时值，可以实时监测液位高度，没有经过任何算法处理，但响应速度快，适用于液面无晃动的液位检测场景。

// ---------------- Cross-Platform Serial Configuration ----------------
#if defined(__AVR_ATmega2560__)
// Arduino Mega 2560: Use hardware serial port Serial1
// Sensor TX connects to Mega Pin 19
// Sensor RX connects to Mega Pin 18
#define sensorSerial Serial1

#elif defined(ESP32)
// ESP32: Manually instantiate hardware serial port; compatible with all models including C3/S2/S3/WROOM, etc.
#include <HardwareSerial.h>
HardwareSerial mySensorSerial(1);  // Consistently use internal UART 1
#define sensorSerial mySensorSerial

#else
// Arduino UNO: Software serial port
// Sensor TX connects to UNO Pin 2
// Sensor RX connects to UNO Pin 3
#include <SoftwareSerial.h>
SoftwareSerial mySerial(2, 3);
#define sensorSerial mySerial
#endif
// ------------------------------------------------

uint8_t Com[8] = { 0x01, 0x03, 0x01, 0x01, 0x00, 0x02, 0x94, 0x37 };  //实时值，无算法
int stallationHeight = 2000, emptyHeight, WaterLevel;
float tem;

void setup() {
  Serial.begin(115200);

  // Print a line of plain English text for testing. If this line appears clearly and without garbled characters,
  // it indicates that communication between the computer and the development board is fully functional! Serial.println("");
  Serial.println("--- System Start ---");

// Initialize the sensor serial port for different development boards
// (The sensor's baud rate must remain at 115200—do not change it)
#if defined(ESP32)
  // ESP32 specific pins: RX connected to 17, TX connected to 16;
  // pins can be customized based on the specific board model
  sensorSerial.begin(115200, SERIAL_8N1, 16, 17);
#else
  // UNO and Mega 2560
  sensorSerial.begin(115200);
#endif
}

void loop() {
  Read_Realtime();
  Serial.print(" TEM: ");
  Serial.print(tem, 1);
  Serial.println(" °C");
  Serial.print(" 安装高度: ");
  Serial.print(stallationHeight);
  Serial.println(" mm");
  Serial.print(" 空高: ");
  Serial.print(emptyHeight);
  Serial.println(" mm");
  Serial.print(" 液位高度: ");
  Serial.print(WaterLevel);
  Serial.println(" mm");
  Serial.println(" ");
  delay(500);
}

void Read_Realtime(void) {
  uint8_t Data[10] = { 0 };
  uint8_t ch = 0;
  bool flag = 1;
  long timeStart = millis();
  long timeStart1 = 0;
  while (flag) {

    if ((millis() - timeStart1) > 100) {
      while (sensorSerial.available() > 0) {
        sensorSerial.read();
      }
      sensorSerial.write(Com, 8);
      timeStart1 = millis();
    }

    if ((millis() - timeStart) > 1000) {
      Serial.println("Time out");
      return;
    }

    if (readN(&ch, 1) == 1) {
      if (ch == 0x01) {
        Data[0] = ch;
        if (readN(&ch, 1) == 1) {
          if (ch == 0x03) {
            Data[1] = ch;
            if (readN(&ch, 1) == 1) {
              if (ch == 0x04) {
                Data[2] = ch;
                if (readN(&Data[3], 6) == 6) {
                  if (CRC16_2(Data, 7) == (Data[7] * 256 + Data[8])) {
                    emptyHeight = Data[3] * 256 + Data[4];
                    tem = (Data[5] * 256 + Data[6]) / 10.0;
                    WaterLevel = stallationHeight - emptyHeight;
                    flag = 0;
                  }
                }
              }
            }
          }
        }
      }
    }
  }
}

uint8_t readN(uint8_t *buf, size_t len) {
  size_t offset = 0, left = len;
  int16_t Tineout = 500;
  uint8_t *buffer = buf;
  long curr = millis();
  while (left) {
    if (sensorSerial.available()) {
      buffer[offset] = sensorSerial.read();
      offset++;
      left--;
    }
    if (millis() - curr > Tineout) {
      break;
    }
  }
  return offset;
}

unsigned int CRC16_2(unsigned char *buf, int len) {
  unsigned int crc = 0xFFFF;
  for (int pos = 0; pos < len; pos++) {
    crc ^= (unsigned int)buf[pos];
    for (int i = 8; i != 0; i--) {
      if ((crc & 0x0001) != 0) {
        crc >>= 1;
        crc ^= 0xA001;
      } else {
        crc >>= 1;
      }
    }
  }

  crc = ((crc & 0x00ff) << 8) | ((crc & 0xff00) >> 8);
  return crc;
}

结果

串口监视器选择115200，打印采集到的空高、液位高度和温度值。

算法模式1输出演示代码

烧录代码前需修改实际的安装高度，默认安装高度为2m，该示例代码输出处理值，经过算法模式1处理，可以实时监测液位高度，数据稳定，但是响应速度较慢，约≥2s左右响应，适用于有液面晃动的液位检测场景。

// ---------------- Cross-Platform Serial Configuration ----------------
#if defined(__AVR_ATmega2560__)
// Arduino Mega 2560: Use hardware serial port Serial1
// Sensor TX connects to Mega Pin 19
// Sensor RX connects to Mega Pin 18
#define sensorSerial Serial1

#elif defined(ESP32)
// ESP32: Manually instantiate hardware serial port; compatible with all models including C3/S2/S3/WROOM, etc.
#include <HardwareSerial.h>
HardwareSerial mySensorSerial(1);  // Consistently use internal UART 1
#define sensorSerial mySensorSerial

#else
// Arduino UNO: Software serial port
// Sensor TX connects to UNO Pin 2
// Sensor RX connects to UNO Pin 3
#include <SoftwareSerial.h>
SoftwareSerial mySerial(2, 3);
#define sensorSerial mySerial
#endif
// ------------------------------------------------

uint8_t Com[8] = { 0x01, 0x03, 0x01, 0x00, 0x00, 0x03, 0x04, 0x37 };  //处理值、算法模式1
int stallationHeight = 2000, emptyHeight, WaterLevel;
float tem;

void setup() {
  Serial.begin(115200);
// Initialize the sensor serial port for different development boards
// (The sensor's baud rate must remain at 115200—do not change it)
#if defined(ESP32)
  // ESP32 specific pins: RX connected to 17, TX connected to 16;
  // pins can be customized based on the specific board model
  sensorSerial.begin(115200, SERIAL_8N1, 16, 17);
#else
  // UNO and Mega 2560
  sensorSerial.begin(115200);
#endif
}

void loop() {
  Read_Processing();
  Serial.print(" TEM: ");
  Serial.print(tem, 1);
  Serial.println(" °C");
  Serial.print(" 安装高度: ");
  Serial.print(stallationHeight);
  Serial.println(" mm");
  Serial.print(" 空高: ");
  Serial.print(emptyHeight);
  Serial.println(" mm");
  Serial.print(" 液位高度: ");
  Serial.print(WaterLevel);
  Serial.println(" mm");
  Serial.println(" ");
  delay(2000);
}

void Read_Processing(void) {
  uint8_t Data[12] = { 0 };
  uint8_t ch = 0;
  bool flag = 1;
  long timeStart = millis();
  long timeStart1 = 0;
  while (flag) {

    if ((millis() - timeStart1) > 100) {
      while (sensorSerial.available() > 0) {
        sensorSerial.read();
      }
      sensorSerial.write(Com, 8);
      timeStart1 = millis();
    }

    if ((millis() - timeStart) > 1000) {
      Serial.println("Time out");
      return;
    }

    if (readN(&ch, 1) == 1) {
      if (ch == 0x01) {
        Data[0] = ch;
        if (readN(&ch, 1) == 1) {
          if (ch == 0x03) {
            Data[1] = ch;
            if (readN(&ch, 1) == 1) {
              if (ch == 0x06) {
                Data[2] = ch;
                if (readN(&Data[3], 8) == 8) {
                  if (CRC16_2(Data, 9) == (Data[9] * 256 + Data[10])) {
                    emptyHeight = Data[3] * 256 + Data[4];
                    tem = (Data[7] * 256 + Data[8]) / 10.0;
                    WaterLevel = stallationHeight - emptyHeight;
                    flag = 0;
                  }
                }
              }
            }
          }
        }
      }
    }
  }
}

uint8_t readN(uint8_t *buf, size_t len) {
  size_t offset = 0, left = len;
  int16_t Tineout = 500;
  uint8_t *buffer = buf;
  long curr = millis();
  while (left) {
    if (sensorSerial.available()) {
      buffer[offset] = sensorSerial.read();
      offset++;
      left--;
    }
    if (millis() - curr > Tineout) {
      break;
    }
  }
  return offset;
}

unsigned int CRC16_2(unsigned char *buf, int len) {
  unsigned int crc = 0xFFFF;
  for (int pos = 0; pos < len; pos++) {
    crc ^= (unsigned int)buf[pos];
    for (int i = 8; i != 0; i--) {
      if ((crc & 0x0001) != 0) {
        crc >>= 1;
        crc ^= 0xA001;
      } else {
        crc >>= 1;
      }
    }
  }

  crc = ((crc & 0x00ff) << 8) | ((crc & 0xff00) >> 8);
  return crc;
}

结果
