2.8_320x240_TFT_LCD_with_Touch_SKU_DFR0665

简介

这是一款2.8英寸的TFT电阻式触摸显示屏。该模块分辨率为320x240,驱动IC为ILI9341,采用SPI(4线)通信方式。板载触摸芯片XPT2046,触控芯片将AD采集的触摸数据转换成SPI数据。模块集成SD卡槽,可以轻松的从SD卡中读取全彩色位图。模块为用户提供了两种接线方式,一种为普通排针接线方式;另一种为GDI(General Display interface)接口,需有GDI接口的主控相匹配(如FireBeetle-M0),只需一根fpc线,就可即插即用,降低了接线的复杂程度。
2.8"LCD显示模块具有显示效果好、触摸灵敏、接线方便、通用性强等优点,可用于许多应用中:传感器监控和报警、Arduino温度监控器/风扇控制器、Touch界面等。

产品参数

  • 工作电压:3.3V~5V
  • TFT可视角度:120度
  • 颜色深度:16位色深(RGB565)
  • 像素个数:240列 × 320行
  • 接口方式:SPI
  • 驱动芯片:ILI9341
  • 触摸芯片:XPT2046
  • 亮度:300 (Typ) cd/m2
  • 全屏点亮功耗:约43.5mA*5V/3.3V(Typ)
  • 工作温度:-10℃~+60℃
  • 显示面积:57.60×43.20 mm
  • 安装孔直径:2 mm
  • 尺寸:80x50 mm
  • 重量:43g

引脚说明

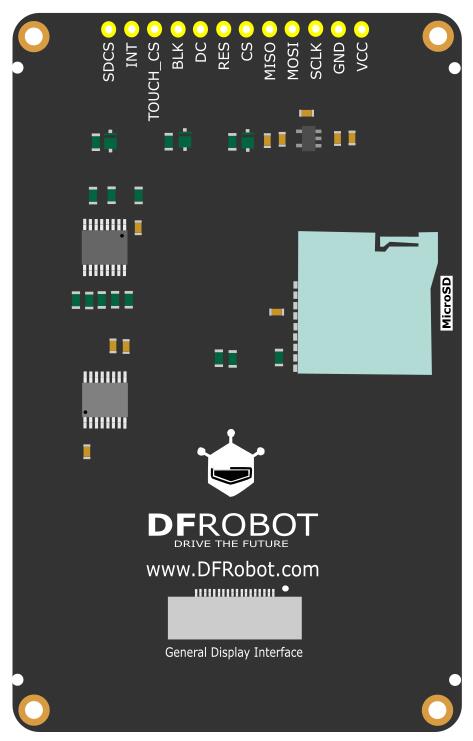

DFR0665-引脚图

标号 名称 功能描述
1 VCC 电源正极
2 GND 电源负极
3 SCLK 时钟
4 MOSI 数据(主机发送从机接收)
5 MISO 数据(主机接收从机发送
6 CS 屏幕片选
7 RES 复位
8 DC 数据/命令
9 BL 背光。背光设定了默认值,用户不用连接背光引脚也可点亮;此外,连接背光引脚,输入高电平(1)是将背光亮度调到最大,输入低电平(0)是关闭背光
10 TOUCH_CS 触摸片选
11 INT 触摸中断
12 SDCS SD卡片选

使用教程

该产品是Breakout模块,采用SPI通信方式,板载GDI接口,降低了接线的复杂程度,并且可以轻松地显示从SD卡中读取到的内容

注意:

1.GDI接口的使用需要与具有GDI接口的主控相匹配

2.建议使用Arduino1.8.10及以上版本

3.SD卡插槽接触不良,有可能会初始化失败,插拔后成功

准备

注意:

1.本产品的演示demo全部存放于DFRobot_GDL->example->basic文件里

2.烧录Demo之前,请打开对应的实体化函数(DFRobot_ST7789_240x320_HW_SPI)

接线图

Arduino 连接图

Arduino-连接图

尺寸图

  • 模块尺寸:50.00x80.00mm
  • 安装孔间距:45mm,75mm
  • 安装孔尺寸:2.0mm

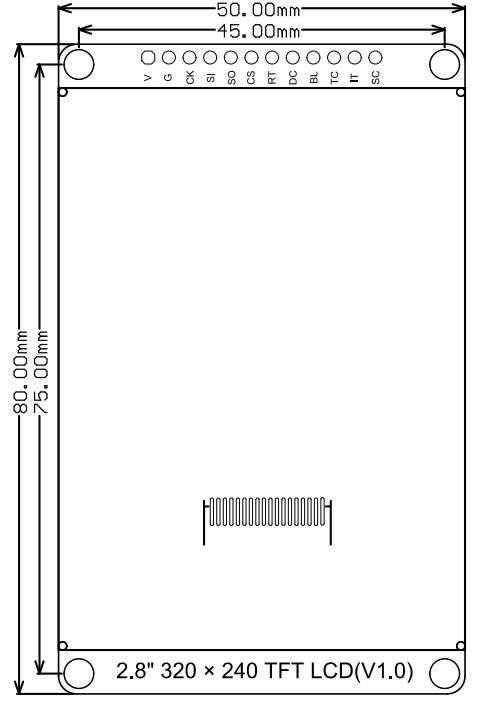

DFR0665尺寸图

样例代码1-basicTest

这是一个基础显示示例,包括画点、线、圆、矩形等。

/*!
 * @file basicTest.ino
 * @brief 演示各种图形绘画效果
 * @n 本示例支持的主板有Arduino Uno, Leonardo, Mega2560, FireBeetle-ESP32, FireBeetle-ESP8266, FireBeetle-M0
 * @copyright	Copyright (c) 2010 DFRobot Co.Ltd (http://www.dfrobot.com)
 * @licence     The MIT License (MIT)
 * @author [LuoYufeng](yufeng.luo@dfrobot.com)
 * @version  V0.1
 * @date  2020-01-07
 * @url https://github.com/DFRobot/DFRobot_GDL
 */

#include "DFRobot_GDL.h"
/*M0*/
#if defined ARDUINO_SAM_ZERO
#define TFT_DC  7
#define TFT_CS  5
#define TFT_RST 6
/*ESP32 and ESP8266*/
#elif defined(ESP32) || defined(ESP8266)
#define TFT_DC  D3
#define TFT_CS  D4
#define TFT_RST D5
/*AVR系列主板*/
#else
#define TFT_DC  2
#define TFT_CS  3
#define TFT_RST 4
#endif

/**
 * @brief Constructor  硬件SPI通信的构造函数
 * @param dc  SPI通信的命令/数据线引脚
 * @param cs  SPI通信的片选引脚
 * @param rst  屏的复位引脚
 */
//DFRobot_ST7789_240x240_HW_SPI screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);
//DFRobot_ST7789_240x320_HW_SPI screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);
DFRobot_ILI9341_240x320_HW_SPI  screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);
//DFRobot_ILI9488_320x480_HW_SPI screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);
/*M0主板下DMA传输*/
//DFRobot_ST7789_240x240_DMA_SPI screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);
//DFRobot_ST7789_240x320_DMA_SPI screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);
//DFRobot_ILI9341_240x320_DMA_SPI screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);
//DFRobot_ILI9488_320x480_DMA_SPI screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);


/*
 *可供用户选择的宏定义颜色
 *COLOR_RGB565_BLACK   COLOR_RGB565_NAVY    COLOR_RGB565_DGREEN   COLOR_RGB565_DCYAN
 *COLOR_RGB565_MAROON  COLOR_RGB565_PURPLE  COLOR_RGB565_OLIVE    COLOR_RGB565_LGRAY
 *COLOR_RGB565_DGRAY   COLOR_RGB565_BLUE    COLOR_RGB565_GREEN    COLOR_RGB565_CYAN
 *COLOR_RGB565_RED     COLOR_RGB565_MAGENTA COLOR_RGB565_YELLOW   COLOR_RGB565_ORANGE
 *COLOR_RGB565_WHITE
 */

void setup() {
  Serial.begin(115200);
  screen.begin();//生成了screen对象
}

void loop(){
    testDrawPixel();
    testLine();
    testFastLines(COLOR_RGB565_PURPLE,COLOR_RGB565_YELLOW);
    testRects(COLOR_RGB565_BLACK,COLOR_RGB565_WHITE);
    testRoundRects();
    testCircles(24,COLOR_RGB565_BLUE);
    testTriangles(COLOR_RGB565_YELLOW);
    testPrint();

}

/*测试画像素点*/
void testDrawPixel() {
  /*
   *@brief 清屏
   *@param c 屏幕颜色
   */
  screen.fillScreen(COLOR_RGB565_BLACK);
  int x = 0;
  int y = screen.height();
  for(int i = 0; i <= screen.width()/2; i += 10){
    for (x = screen.width() - i; x >= i; x-=10 ){
      /*
       *@brief 画像素点
       *@param x 横坐标
       *       y 纵坐标
       *       c 像素点颜色
       */
      screen.drawPixel(x, y, COLOR_RGB565_ORANGE);
      delay(10);
    }

    for (y = screen.height() - i; y >= i; y-=10){
      screen.drawPixel(x, y, COLOR_RGB565_ORANGE);
      delay(10);
    }

    for (x = i; x <= screen.width() - i + 1; x+=10 ){
      screen.drawPixel(x, y, COLOR_RGB565_ORANGE);
      delay(10);
    }

    for (y = i; y <= screen.height() - i + 1; y+=10){
      screen.drawPixel(x, y, COLOR_RGB565_ORANGE);
      delay(10);
    }
  }
}

/*测试画线*/
void testLine(){
	 //0x00FF 是格式为RGB565的颜色数据
  uint16_t color = 0x00FF;
  screen.fillScreen(COLOR_RGB565_BLACK);
  for (int16_t x=0; x < screen.width(); x+=6) {
    /*
     *@brief 画线段
     *@param x0 第一个顶点横坐标
     *       y0 第一个顶点纵坐标
     *       x1 第二个顶点横坐标
     *       y1 第二个顶点纵坐标
     *       c 线段颜色
     */
    screen.drawLine(/*x0=*/screen.width()/*屏幕宽度*//2, /*y0=*/screen.height()/*屏幕高度*//2, /*x1=*/x, /*y1=*/0, /*c=*/color+=0x0700);
  }
  for (int16_t y=0; y < screen.height(); y+=6) {
    screen.drawLine(screen.width()/2, screen.height()/2, screen.width(), y, color+=0x0700);
  }

  for (int16_t x = screen.width(); x >= 0; x-=6) {
    screen.drawLine(screen.width()/2, screen.height()/2, x,screen.height(), color+=0x0700);
  }

  for (int16_t y = screen.height(); y >= 0; y-=6) {
    screen.drawLine(screen.width()/2, screen.height()/2, 0, y, color+=0x0700);
  }
}

/*测试快速画线(需设置延时),只有横线和纵线*/
void testFastLines(uint16_t color1, uint16_t color2) {
  for (int16_t y=0; y < screen.height(); y+=4) {
    /*
     *@brief 画线段
     *@param x 第一个顶点横坐标
     *       y 第一个顶点纵坐标
     *       w 线段的长度
     *       c 线段颜色
     */
    screen.drawFastHLine(/*x=*/0, /*y=*/y, /*w=*/screen.width(),/*c=*/color2);
    delay(10);
  }

  for(int16_t x=0; x < screen.width(); x+=3) {
    /*
     *@brief 画线段
     *@param x 第一个顶点横坐标
     *       y 第一个顶点纵坐标
     *       h 线段的长度
     *       c 线段颜色
     */
    screen.drawFastVLine(/*x=*/x, /*y=*/0, /*h=*/screen.height(), /*c=*/color1);
    delay(10);
  }
}

/*测试画矩形*/
void testRects(uint16_t color1, uint16_t color2) {
    screen.fillScreen(COLOR_RGB565_BLACK);
    int16_t x=screen.width()-12;
    for (; x > 100; x-=screen.width()/40) {
      /*
       *@brief 画空心矩形
       *@param x 顶点横坐标
       *@param y 顶点纵坐标
       *@param w 横向边长
       *@param h 纵向边长
       *@param color 填充颜色,565结构的RGB色
       */
      screen.drawRect(/*x=*/screen.width()/2 -x/2, /*y=*/screen.height()/2 -x/2 , /*w=*/x, /*h=*/x, /*color=*/color2+=0x0F00);
      delay(100);
    }

    /*
     *@brief 画填充矩形
     *@param x 顶点横坐标
     *@param y 顶点纵坐标
     *@param w 横向边长
     *@param h 纵向边长
     *@param color 填充颜色,565结构的RGB色
    */
    screen.fillRect(/*x=*/screen.width()/2 -x/2, /*y=*/screen.height()/2 -x/2 , /*w=*/x, /*h=*/x, /*color=*/color2);
    delay(100);
    for(; x > 6; x-=screen.width()/40){
      screen.drawRect(screen.width()/2 -x/2, screen.height()/2 -x/2 , x, x, color1);
      delay(100);
    }
}

/*测试画圆角矩形*/
void testRoundRects() {
  screen.fillScreen(COLOR_RGB565_BLACK);
   //0xF00F 是格式为RGB565的颜色数据
  int color = 0xF00F;
  int i;
  int x = 0;
  int y = 0;
  int w = screen.width()-3;
  int h = screen.height()-3;
  for(i = 0 ; i <= 16; i+=2) {
    /*
     *@brief 画空心圆角矩形
     *@param x0 起始顶点横坐标
     *@param y0 起始顶点纵坐标
     *@param w 横向边长
     *@param h 纵向边长
     *@param radius 圆角半径
     *@param color 边框颜色,565结构的RGB色
     */
    screen.drawRoundRect(/*x0=*/x, /*y0=*/y, /*w=*/w, /*h=*/h, /*radius=*/20, /*color=*/color);
    x+=5;
    y+=5;
    w-=10;
    h-=10;
    color+=0x0100;
    delay(50);
  }
  for(i = 0 ; i <= 16; i+=2) {
    /*
     *@brief 画填充圆角矩形
     *@param x0 起始顶点横坐标
     *@param y0 起始顶点纵坐标
     *@param w 横向边长
     *@param h 纵向边长
     *@param radius 圆角半径
     *@param color 填充颜色,565结构的RGB色
     */
    screen.fillRoundRect(/*x0=*/x, /*y0=*/y, /*w=*/w, /*h=*/h, /*radius=*/10, /*color=*/color);
    x+=5;
    y+=5;
    w-=10;
    h-=10;
    color+=0x0500;
    delay(50);
  }
}

/*测试画圆*/
void testCircles(uint8_t radius, uint16_t color) {
  screen.fillScreen(COLOR_RGB565_BLACK);
  for (int16_t x=radius; x <=screen.width()-radius; x+=radius*2) {
    for (int16_t y=radius; y <=screen.height()-radius; y+=radius*2) {
      /*
       *@brief 画空心圆
       *@param x0 圆心横坐标
       *@param y0 圆心纵坐标
       *@param r 半径
       *@param color 圆周颜色,565结构的RGB色
       */
      screen.drawCircle(/*x0=*/x, /*y0=*/y, /*r=*/radius, /*color=*/color);
        if(x == y ||x == -y ||x == y + 2*radius)
          /*
           *@brief 画填充圆
           *@param x0 圆心横坐标
           *@param y0 圆心纵坐标
           *@param r 半径
           *@param color 填充颜色,565结构的RGB色
           */
          screen.fillCircle(/*x0=*/x, /*y0=*/y, /*r=*/radius, /*color=*/color);
       color += 800;
       delay(100);
    }
  }
}

/*测试画三角形*/
void testTriangles(uint16_t color){
  screen.fillScreen(COLOR_RGB565_BLACK);

  for (int16_t i=0; i <=screen.width(); i+=24)
    /*
     *@brief 画空心三角形
     *@param x0 起始顶点横坐标
     *@param y0 起始顶点纵坐标
     *@param x1 第二个顶点横坐标
     *@param y1 第二个顶点纵坐标
     *@param x2 第三个顶点横坐标
     *@param y2 第三个顶点纵坐标
     *@param color 边框颜色,565结构的RGB色
     */
    screen.drawTriangle(/*x0=*/i,/*y0=*/0,/*x1=*/0,/*y1=*/screen.height()-i,/*x2=*/screen.width()-i,/*y2=*/screen.height(), /*color=*/color);

  for (int16_t i=0; i <screen.width(); i+=24)
    screen.drawTriangle(screen.width(),i*4/3,0,screen.height()-i*4/3,i,0, color);

  for (int16_t i=0; i <screen.width(); i+=24)
    screen.drawTriangle(screen.width(),i*4/3,i,0,screen.width()-i,screen.height(), color);

  color = COLOR_RGB565_RED;
  for (int16_t i=0; i <=screen.width(); i+=24)
    /*
     *@brief 画填充三角形
     *@param x0 起始顶点横坐标
     *@param y0 起始顶点纵坐标
     *@param x1 第二个顶点横坐标
     *@param y1 第二个顶点纵坐标
     *@param x2 第三个顶点横坐标
     *@param y2 第三个顶点纵坐标
     *@param color 填充颜色,565结构的RGB色
     */
    screen.fillTriangle(/*x0=*/i,/*y0=*/0,/*x1=*/0,/*y1=*/screen.height()-i,/*x2=*/screen.width()-i,/*y2=*/screen.height(), /*color=*/color+=100);

  for (int16_t i=0; i <screen.width(); i+=24)
    screen.fillTriangle(screen.width(),i*4/3,0,screen.height()-i*4/3,i,0, color+=100);

  for (int16_t i=0; i <screen.width(); i+=24)
    screen.fillTriangle(screen.width(),i*4/3,i,0,screen.width()-i,screen.height(), color+=100);
}

void testPrint() {
 //0x00FF 是格式为RGB565的颜色数据
  int16_t color = 0x00FF;
  //设置文本自动换行模式
  //true=文本自动换行,false=不自动换行
  screen.setTextWrap(false);
  //填充颜色,565结构的RGB色
  screen.fillScreen(COLOR_RGB565_BLACK);

  //设置坐标位置x=0,y=50
  screen.setCursor(0, 50);
  //设置文本颜色;这是变化的值
  screen.setTextColor(color+=0x3000);
  //设置文本大小为0
  screen.setTextSize(0);
  //输出文本
  screen.println("Hello World!");

  screen.setTextColor(color+=0x3000);
  //设置文本大小为1
  screen.setTextSize(1);
  screen.println("Hello World!");

  screen.setTextColor(color+=0x3000);
  //设置文本大小为2
  screen.setTextSize(2);
  screen.println("Hello World!");

  screen.setTextColor(color+=0x3000);
  //设置文本大小为3
  screen.setTextSize(3);
  screen.println("Hello World!");

  screen.setTextColor(color+=0x3000);
  //设置文本大小为4
  screen.setTextSize(4);
  screen.println("Hello!");
  //设置文本大小为5
  screen.setTextSize(5);
  screen.print("Hello!");
  delay(2000);

  //设置坐标位置x=0,y=0
  screen.setCursor(0, 0);
  //填充颜色,565结构的RGB色
  screen.fillScreen(COLOR_RGB565_BLACK);
  screen.setTextSize(2);
  screen.setTextColor(color+=0x3000);
  screen.print("a = ");

  screen.setTextColor(color+=0x3000);
  int a = 1234;
  screen.println(a, 1);
  screen.setTextColor(color+=0x3000);
  screen.print(8675309, HEX);
  screen.println("this is HEX!");
  screen.println("");

  screen.setTextColor(color+=0x0F00);
  screen.println("running for: ");
  screen.setTextColor(color+=0x0F00);
  //输出毫秒时间
  screen.print(millis());
  screen.setTextColor(color+=0x0F00);
  screen.println("/1000 seconds.");

  char *text = "Hi DFRobot!";
  screen.setTextColor(color+=0x0F00);
  screen.setTextWrap(true);
  screen.setTextSize(3);
  screen.println(text);
  //screen.setFonts((const gdl_Font_t *)SIMKAIFont18ptBitmaps);
  screen.println(text);
  delay(2000);
}

结果

样例代码2 - icon

这是UI控件Demo——数字键盘。首先点击文本框出现光标后,点击数字,文本框内会有相应数字显示。键盘右下脚的"x",用于删除文本框中的内容。

注:由于Arduino UNO的内存容量有限,无法运行涉及UI的程序。因此,我们建议使用内存更充足的ESP32进行此类操作。

/*!
 * @file UI_keypad.ino
 * @brief Create a numeric keyboard control on the screen.
 * @n Users can click number on the keyboard and then the output will be displayed in the text box.
 * @n Click the text box to move the cursor into it when we need a text box to display.
 * @n The demo supports Arduino Uno, Leonardo, Mega2560, FireBeetle-ESP32, FireBeetle-ESP8266, and FireBeetle-M0.
 *
 * @copyright Copyright (c) 2010 DFRobot Co. Ltd (http://www.dfrobot.com)
 * @licence The MIT License (MIT)
 * @author [fengli] (li.feng@dfrobot.com)
 * @version V1.0
 * @date 2019-12-6
 * @get from https://www.dfrobot.com
 * @url https://github.com/DFRobot/DFRobot_GDL/src/DFRpbot_UI
*/
#include "DFRobot_UI.h"
#include "Arduino.h"
#include "DFRobot_GDL.h"
#include "DFRobot_Touch.h"

/*M0*/
#if defined ARDUINO_SAM_ZERO
#define TFT_DC  7
#define TFT_CS  5
#define TFT_RST 6
#define TOUCH_CS A3
/*ESP32 and ESP8266*/
#elif defined(ESP32) || defined(ESP8266)
#define TFT_DC  D3
#define TFT_CS  D4
#define TFT_RST D5
#define TOUCH_CS D6
/* AVR series mainboard */
#else
#define TFT_DC  2
#define TFT_CS  3
#define TFT_RST 4
#define TOUCH_CS 5
#endif
/**
 * @brief Constructor When the touch uses XPT2046 chip, you can call this constructor
 * @param cs SPI chip select signal
 * @param rst Reset signal
 * @param irq Interrupt signal
 */
DFRobot_Touch_XPT2046 touch(/*cs=*/TOUCH_CS);

/**
 * @brief Constructor When the screen uses hardware SPI communication, the driver IC is ILI9341, and the screen resolution is 240x320, this constructor can be called
 * @param dc Command/data line pin for SPI communication
 * @param cs Chip select pin for SPI communication
 * @param rst Reset pin of the screen
 */
DFRobot_ILI9341_240x320_HW_SPI screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);
 /* M0 mainboard DMA transfer */
//DFRobot_ILI9341_240x320_DMA_SPI  screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);

/**
 * @brief Constructor
 * @param gdl Screen object
 * @param Touch Touch object
 */
DFRobot_UI ui(&screen, &touch);

void setup()
{

  Serial.begin(9600);

  ui.begin();
  // Set the UI theme, there are two themes to choose from: CLASSIC and MODERN.
  ui.setTheme(DFRobot_UI::CLASSIC);

   //Create a numeric keypad
  DFRobot_UI::sObject_t &kp = ui.creatKeyPad();
  ui.draw(&kp);
}

void loop()
{
  //  Refresh
  ui.refresh();

}

结果

样例代码3 - UI控件

这是UI控件Demo——手势。首先点击文本框出现光标后,在屏幕上进行手势滑动(上、下、左、右、双击、单击),文本框中会出现对应手势的说明。

注:由于Arduino UNO的内存容量有限,无法运行涉及UI的程序。因此,我们建议使用内存更充足的ESP32进行此类操作。

/*!
 * @file UI_gesture.ino
 * @brief Recognize user's gesture in the specified area of the screen, and display the name of the gesture in the text box.
 * @n The demo supports Arduino Uno, Leonardo, Mega2560, FireBeetle-ESP32, FireBeetle-ESP8266, FireBeetle-M0
 * @n Click the text box to move the cursor into it when we need a text box to display.
 * @copyright Copyright (c) 2010 DFRobot Co. Ltd (http://www.dfrobot.com)
 * @licence The MIT License (MIT)
 * @author [fengli] (li.feng@dfrobot.com)
 * @version V1.0
 * @date 2019-12-6
 * @get from https://www.dfrobot.com
 * @url https://github.com/DFRobot/DFRobot_GDL/src/DFRpbot_UI
*/
#include "DFRobot_UI.h"
#include "Arduino.h"
#include "DFRobot_GDL.h"
#include "DFRobot_Touch.h"

/*M0*/
#if defined ARDUINO_SAM_ZERO
#define TFT_DC  7
#define TFT_CS  5
#define TFT_RST 6
#define TOUCH_CS A3
/*ESP32 and ESP8266*/
#elif defined(ESP32) || defined(ESP8266)
#define TFT_DC  D3
#define TFT_CS  D4
#define TFT_RST D5
#define TOUCH_CS D6
/* AVR series mainboard */
#else
#define TFT_DC  2
#define TFT_CS  3
#define TFT_RST 4
#define TOUCH_CS 5
#endif
/**
 * @brief Constructor When the touch uses XPT2046 chip, you can call this constructor
 * @param cs SPI chip select signal
 * @param rst Reset signal
 * @param irq Interrupt signal
 */
DFRobot_Touch_XPT2046 touch(/*cs=*/TOUCH_CS);

/**
 * @brief Constructor When the screen uses hardware SPI communication, the driver IC is ILI9341, and the screen resolution is 240x320, this constructor can be called
 * @param dc Command/data line pin for SPI communication
 * @param cs Chip select pin for SPI communication
 * @param rst Reset pin of the screen
 */
DFRobot_ILI9341_240x320_HW_SPI screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);
/* M0 mainboard DMA transfer */
//DFRobot_ILI9341_240x320_DMA_SPI  screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);

/**
 * @brief Constructor
 * @param gdl Screen object
 * @param touch Touch object
 */
DFRobot_UI ui(&screen, &touch);



void setup()
{

  Serial.begin(9600);
  ui.begin();
  // Set the UI theme, there are two themes to choose from: CLASSIC and MODERN.
  ui.setTheme(DFRobot_UI::MODERN);

  //Create a text box control
  DFRobot_UI::sTextBox_t &tb = ui.creatText();
  //Create a text box control on the screen and draw the text box according to the customized or initialized parameters
  ui.draw(&tb);
  /**
   * @brief  Set the touch gesture recognition area
   */
  ui.setGestureArea(/*x=*/screen.width()/2-75,/*y=*/100,/*width=*/150,/*height=*/150);
  while(true){
     //Refresh
    ui.refresh();
    // getGestures(): Get gesture
    switch(ui.getGestures()){
      //setText:let the text box display a string
      case ui.SUPGLIDE : tb.setText("upwards slide"); break;
      case ui.SDOWNGLIDE : tb.setText("down slide"); break;
      case ui.SLEFTGLIDE : tb.setText("left slide"); break;
      case ui.SRIGHTGLIDE : tb.setText("right slide"); break;
      case ui.DLONGPRESSED : tb.setText("long press"); break;
      case ui.SCLICK : tb.setText("click"); break;
      case ui.DDOUBLECLICK : tb.setText("double click"); break;
      default  :  break;
      }
  }
}


void loop()
{


}

结果

兼容性测试

MCU 测试通过 测试失败 未测试 特别关注
FireBeetle-ESP32
FireBeetle-ESP8266
Arduino Uno
Leonardo
Mega2560
Arduino M0

疑难解答

1.问:屏幕通过FPC排线接到esp32E,出现花屏?

答:修改代码中的引脚定义.

esp32-E GDL接口引脚定义详见:https://wiki.dfrobot.com.cn/_SKU_DFR0654_FireBeetle_Board_ESP32_E#target_12

/*ESP32 and ESP8266*/
#elif defined(ESP32) || defined(ESP8266)
#define TFT_DC  D2
#define TFT_CS  D6
#define TFT_RST D3
#define TOUCH_CS D12

更多问题及有趣的应用,可以 访问论坛 进行查阅或发帖!

更多

<File:shopping_car.png> DFRobot商城购买链接
